Three Anti
Your current position: Home > PRODUCTS > Three Anti
PRODUCTS#FANWEI
· Factory, power station, switch room, pump
house, corridor, trestle, port and pier, storage yard, etc.
· Environments exposed to the rain, with
water vapor, dust, or corrosive gas.
PRODUCTS#TEDIAN
· Die-casting alloy shell with high
pressure electrostatic powder spray, high strength and corrosion resistance .
· Original heat radiation structure , rapid and sufficient heat dissipation . External power, convenient maintenance.
· Silicone rubber sealed, excellent performance of protection and ageing-resistant , adapt
to kinds of awful environments.
· High-quality LED chips, high luminous
efficiency, good color rendering, anti-impact and vibration resistance .
· Non-imaging
secondary optical design,effcient using of light energy, optional light distributions, wide, narrow, asymmetric.
· Constant
current drive, wide range input, intelligent protective
circuit, stable operation, ultra-long life .
· Excellent
EMC design, no interferes to electric power systems or other electrical equipment s.
· Variety installation
types, meet all kinds of lighting needs.
PRODUCTS#JISHU
| 型號 Type | MP-140 | MP-200 | MP-200S |
| 功率 Power | 140W | 200W | 200W |
| 輸入電壓 Input Voltage | 100～240VAC 50~60Hz | ||

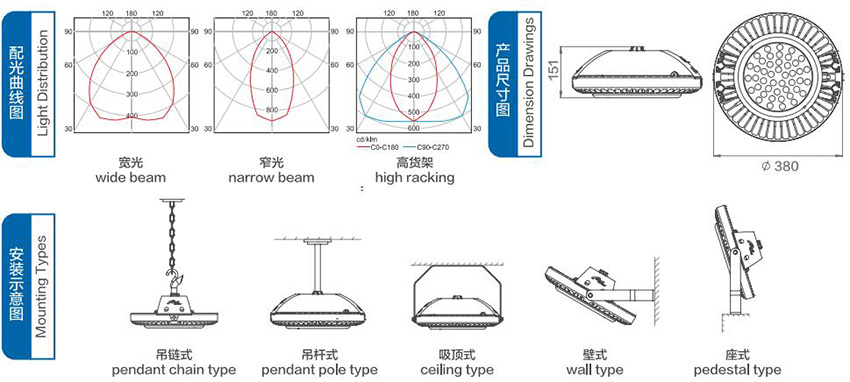

| 配光 Light Distribution | 寬光Wide Beam、窄光Narrow Beam、高貨架 High Racking | ||
| 系統輸出 System Output | 13500lm | 18000lm | 21500lm |
| 系統光效 System Luminous Efficiency | ≥95lm/W | ≥90lm/W | ≥105lm/W |
| 顯色指數 Color Rendering Index | ≥80 | ||
| 色溫 Color Temperature | 2700～6500K | ||
| 防護等級 Degree of Protection | IP66 | ||
| 防腐等級 Degree of Corrosion-proof | WF2 | ||
| 環境溫度 Ambient Temperature | -40℃～55℃ | -40℃～40℃ | -40℃～55℃ |
| 重量 Weight | 7.5kg | ||
| 執行標準 Implementing Standard | GB7000.1 GB7000.201 GB17625.1 GB17743 | ||
PRODUCTS#XUAN
| 序號Serial number | 型號Type | 功率Power | 系統輸出System Output | 配光Light Distribution |
| 1 | MP-140-WB | 140W | ≥13500lm | 寬光Wide Beam |
| 2 | MP-140-NB | 140W | ≥13500lm | 窄光Narrow Beam |
| 3 | MP-140-HR | 140W | ≥13500lm | 高貨架 High Racking |
| 4 | MP-200-WB | 200W | ≥18000lm | 寬光Wide Beam |
| 5 | MP-200-NB | 200W | ≥18000lm | 窄光Narrow Beam |
| 6 | MP-200-HR | 200W | ≥18000lm | 高貨架 High Racking |
| 7 | MP-200S-WB | 200W | ≥21500lm | 寬光Wide Beam |
| 8 | MP-200S-NB | 200W | ≥21500lm | 窄光Narrow Beam |
| 9 | MP-200S-HR | 200W | ≥21500lm | 高貨架 High Racking |
PRODUCTS#TIHUAN
MP-140/200 can replace 250/400W metal halide lamps
and other similar traditional lamps with equivalent.
